Application Scenario: for intrinsically safe level detection where battery power is required

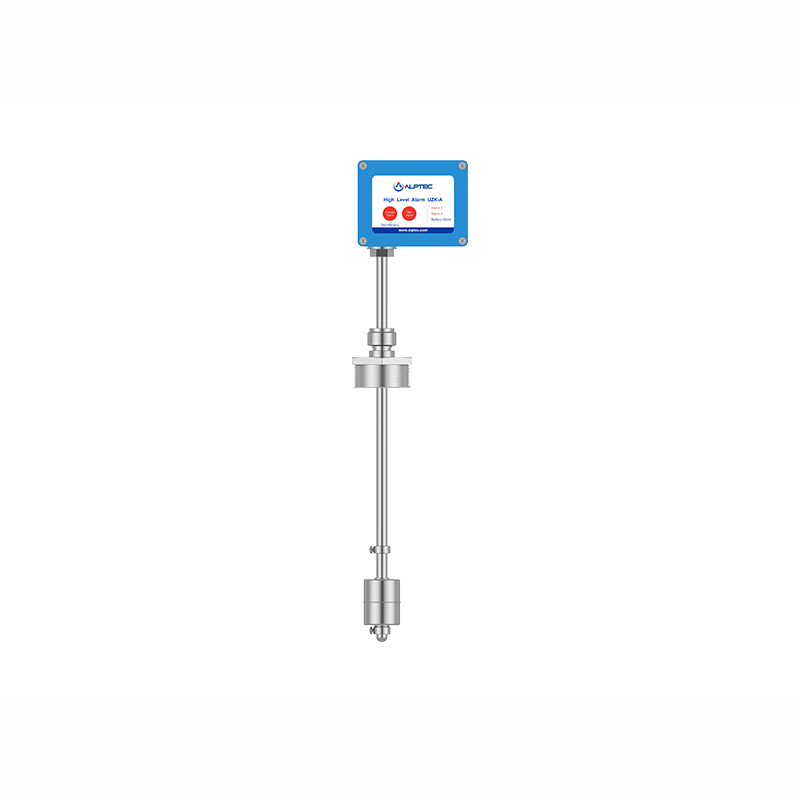

The High Level Alarms provide audible and visible alarms for monitoring levels of liquids. It can be directly mounted on a fuel tank to provide a warning of a full tank high level. Optionally the alarm panel may be remote mounted from the sensor. The powerful audible alarm can be heard over background sound, for example, pumping equipment. Devices are weather proof and can be mounted in wet environments.
Battery | 6VDC(4XAAA) |
Alarms | Audible and visible alarms |
Alarm Volume | ≥110dB |
Ambient Temperature | -40℃~+60℃(-40~+140) |
Sensor | Float sensor |
EU-Type Examination Certificate No. | Pre-safe 18 ATEX 13426X |
IEC Certificate No. | IECEx PRE 18.0084X |
Applicable Directive | 2014/34/EU |
1.Low battery alarm.
2.Adjustable sensor level.
3.A standard 2-inch BSP fitting provided for mounting. Optional mounting fittings are available upon request.
