Application Scenario: for anti-evacuation or anti-spill detection of all types of liquids in tanks and containers

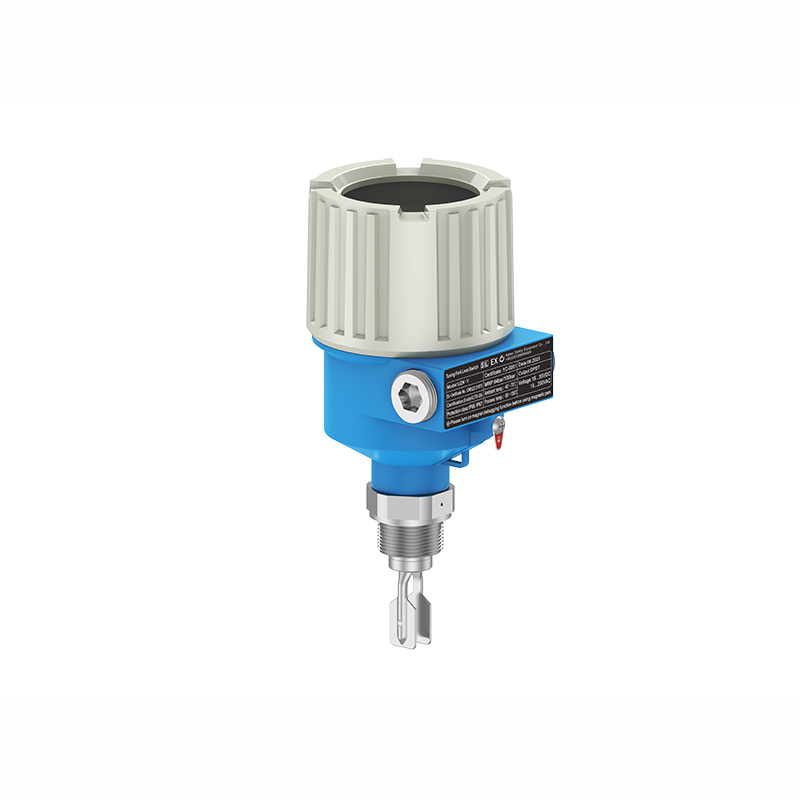

Based on regular tuning fork level switch, functions of external magnet debugging and device frequency display are added.
External magnet debugging: No need to operate the meter with opening the cover. The meter tests can be finished simply, safely, and quickly in daily production activities.

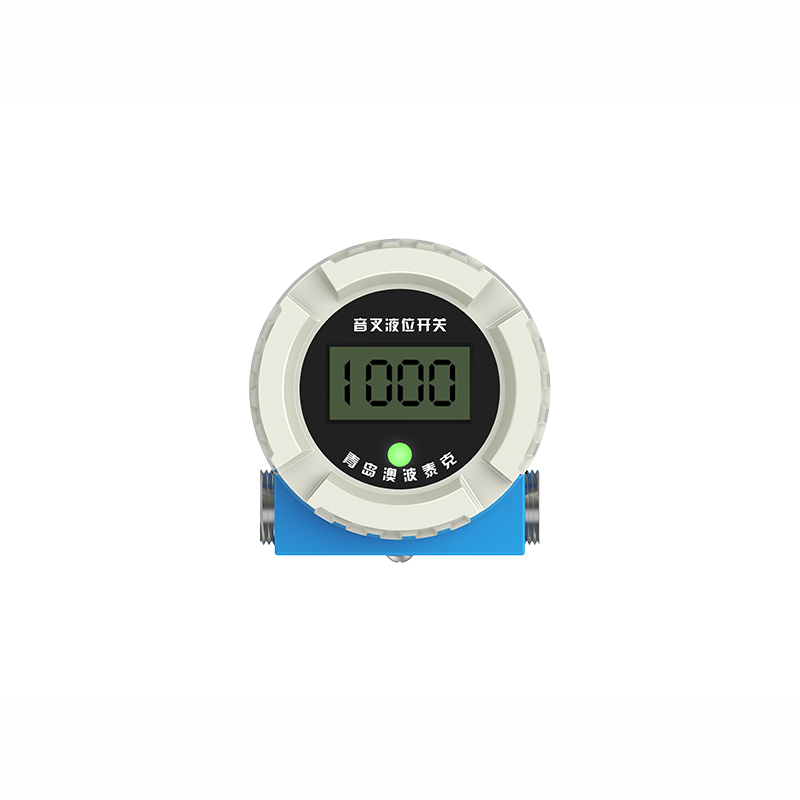

Device frequency display: It helps to judge the working state or fault state more conveniently and intuitively, which save you plenty of time in identifying the safety hazards. In addition, it comes with a three-color light display and makes it easy to judge the working status of the meter from a distance.
| Applicable Liquids | Density | Larger than 0.5g/cm3 |
| Viscosity | 0.1~10000mPa.s | |
| Flow Rate | Up to 6m/s | |
| Probe Parameters | Vibration Frequency | 1100Hz |
| Fork Body Length | 40mm | |
| Precision | Measurement deviation | ±1mm |
| Delay | 2mm | |
| Repeatability | 0.1mm | |
| Switching Delay | Contact with Materials | 0.5S |
| No Materials | 1S | |
| Power Input | Relay Type | 20~250V AC/20~72V DC |
| Power Consumption | AC, 1~8VA; DC, 1.5W | |
| Signal Output | Relay | DPDT, 5A/253V AC/24V DC |
| Three-wire | PNP Signal | |
| Environmental Conditions | Process Pressure | -1~100bar |
| Process Temperature | -50~+300℃ | |
| Environmental Temperature | -40~+70℃ | |
| Safety Certification | Protection Class | IP66/IP67/IP68 |
| Explosion-proof Grade | Flameproof type: Ex db IIC T6 Gb | |
| Material | Flange | 316L, 316L Coating Enamel, 316 Coating ECTFE, 316L Coating PFA |
| Fork Body | 316L, 316L Coating Enamel, 316 Coating ECTFE, 316L Coating PFA |
1.Fork body vibration frequency display, making product stability visualized;
2.Self-check feature can accurately locate fault information;
3.The three-color light status display makes it easy to judge the working status of the meter from a distance.
